Laser Engraving Machine Diode Enclosed Dual Laser CNC High-speed Cutting Machine 400X4000mm

Laser Engraving Machine Diode Enclosed Dual Laser CNC High-speed Cutting Machine 400X4000mm

High-speed Cutting Machine 400X4000mm

high speed laser engraving machine

CNC laser engraving machine

Place of Origin:

China

Brand Name:

ACMER

Certification:

CE,FCC,RoHS,FDA

Model Number:

ACMER P3

Contact Us
Request A Quote
Product Details
Laser Type:
10W Diode Laser& 2W IR Laser
Maximum Engraving Speed:
48000mm/min
Movement Structure:
Industrial Guide Rail + CoreXY
Machine Weight:
19kg
Laser Module:
P3 2 In 1 Dual Laser
Camera Resolution:
2592 X 1944 Pixels
Laser Wavelength:
IR: 1064±1nm / Diode: 455±5nm
Operation System:
MacOS, Windows, Linux, Android, IOS
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Payment Terms
T/T, L/C
Product Description

Product Description:

ACMER P3 has come to subvert the definition of laser engraving machine, truly let the creativity is not limited, let the creativity and more materials combined!

Features:

  • Product Name: Laser Engraving Cutting Machines
  • Engraving Area: 400mm × 400mm
  • Laser Type: 10W Diode Laser & 2W IR Laser
  • Package Weight: 26kg
  • Camera Resolution: 2592 X 1944 Pixels
  • Machine Weight: 19kg

This product is a great choice for those looking for high-quality Laser Engraving Tools or Laser Cutting Machines.



Technical Parameters:

Laser Engraving Cutting Machines
Laser Output Power IR:2000mw+Diode 10000mw
Machine Power 96W
Movement Structure Industrial Guide Rail + CoreXY
Package Weight 26kg
Assembly Method Pre-assembled
Maximum Engraving Speed 48000mm/min
Laser Type 10W Diode Laser& 2W IR Laser
Engraving Area 400*390mm
Laser Module P3 2 In 1 Dual Laser
Camera Resolution 2592 X 1944 Pixels
Power Input DC 24V 4A
Machine Weight 19kg


FAQ:

What is the maximum size that ACMER P3 can engrave?

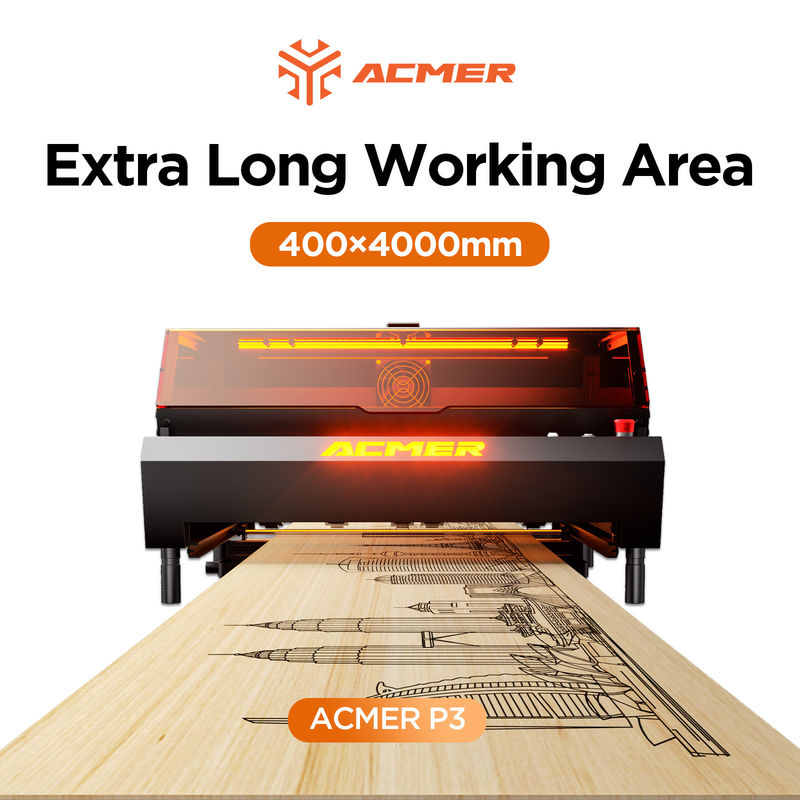

The maximum engraving size for the ACMER P3 depends on the laser modules and the presence of a conveyor. With a 24W diode laser or 2W IR laser, the maximum engraving size is 400mm x 400mm. For models with a 48W diode laser or dual-laser, the maximum engraving size is 400mm x 390mm. However, if the machine is equipped with our optional conveyor, the engraving size can be expanded to a maximum length of 4000mm, allowing you to engrave larger objects or continuous designs.



What is the difference between IR laser and diode laser?

IR laser and diode laser are two different wavelengths of light that produce different engraving effects on various materials.IR laser is the perfect choice for metal engraving, such as gold, silver, copper, aluminum, iron, stainless steel, etc. It produces a smaller laser spot, resulting in more precise engraving. Additionally, it can also engrave materials like ABS, acrylic, PC, leather, and stone.Diode laser, on the other hand, is the ideal choice for wood engraving. It provides precise engraving and is also suitable for materials like ceramic, acrylic, and plastic. Moreover, diode lasers have a stronger cutting capability.When choosing a laser for engraving, consider the material you want to engrave and select the appropriate laser based on its characteristics.
